Relay; Omron; G2RL-1-E-12VDC; for socket; PCB trough hole; SPDT; 12V; 16A; 16A

Files to download
Datasheet

Relay; electromagnetic miniature; G2RL-1-E-12VDC; 12V; DC; SPDT; 16A; 250V AC; 16A; 24V DC; for socket; PCB trough hole; Omron; RoHS

Item ID: 39553

Quantity: 221 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	8,63
3+	6,90
5+	5,52
20+	5,11
100+	4,71

Quantity:

Details
Name	Relay
Type	electromagnetic miniature
Symbol	G2RL-1-E-12VDC
Input voltage	12V
Input voltage type	DC
Contacts configuration	SPDT
Rated AC current	16A
Rated AC voltage	250V AC
Rated DC current	16A
Rated DC voltage	24V DC
Mounting way	PCB trough hole; for socket
Manufacturer	Omron
Certificates	RoHS
Compatible with socket	14FF-2Z-C2-1
Contact material	AgCdO
Coil resistance	360Ohm
Rated coil power DC	400mW

Substitutes or similar items

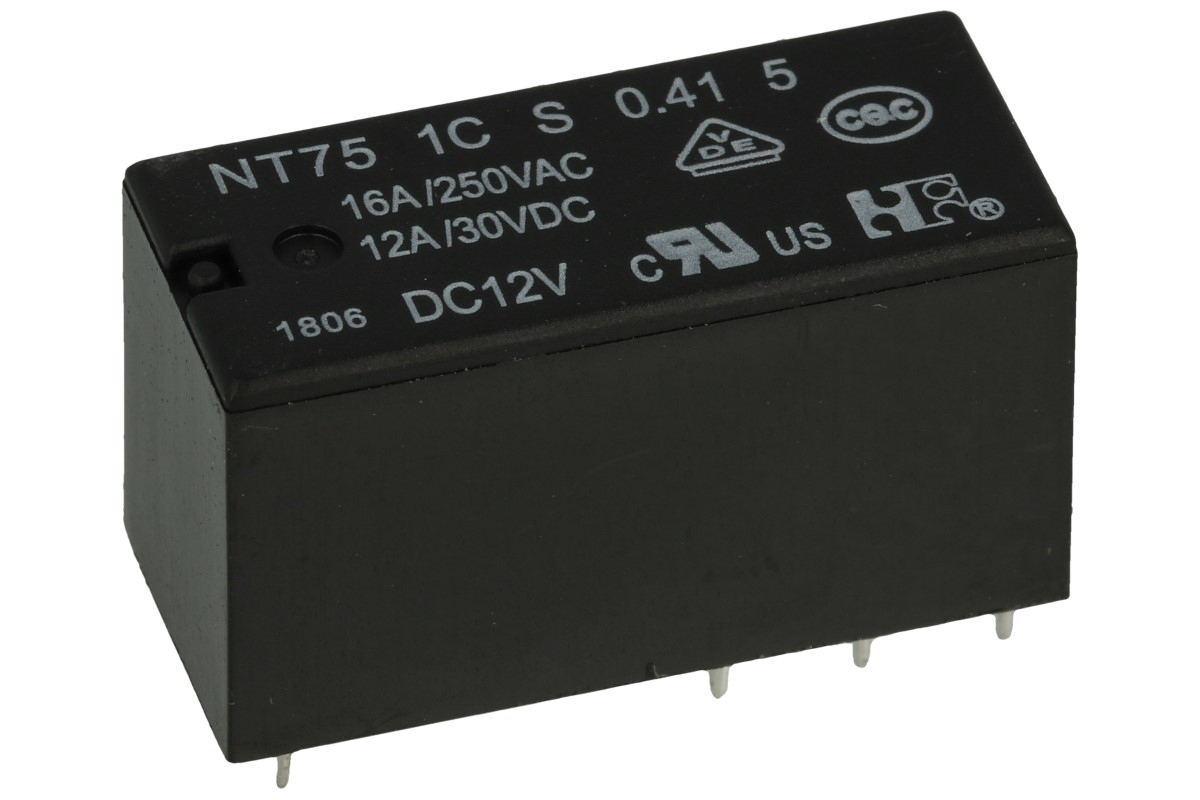

Relay; electromagnetic miniature; NT75-1CS; 12V; DC; SPDT; 16A; 250V AC; for socket; PCB trough hole; Forward Relays; RoHS

Relay; electromagnetic miniature; NT75-1CS; 12V; DC; SPDT; 16A; 250V AC; for socket; PCB trough hole; Forward Relays; RoHS
Item ID		35736
	Quantity [ pc ]	225

Relay; electromagnetic miniature; 40.61.9.012.0000; 12V; DC; SPDT; 16A; 250V AC; PCB trough hole; for socket; Finder; RoHS

Relay; electromagnetic miniature; 40.61.9.012.0000; 12V; DC; SPDT; 16A; 250V AC; PCB trough hole; for socket; Finder; RoHS
Item ID		00379
	Quantity [ pc ]	75

Relay; electromagnetic miniature; RM85-2011-35-1012; 12V; DC; SPDT; 16A; 250V AC; 16A; 24V DC; PCB trough hole; for socket; Relpol; RoHS

Relay; electromagnetic miniature; RM85-2011-35-1012; 12V; DC; SPDT; 16A; 250V AC; 16A; 24V DC; PCB trough hole; for socket; Relpol; RoHS
Item ID		01082
	Quantity [ pc ]	2227

Relay; electromagnetic miniature; FTR-K1CK012W; 12V; DC; SPDT; 16A; 250V AC; 16A; 24V DC; PCB trough hole; Fujitsu Takamisawa; RoHS

Relay; electromagnetic miniature; FTR-K1CK012W; 12V; DC; SPDT; 16A; 250V AC; 16A; 24V DC; PCB trough hole; Fujitsu Takamisawa; RoHS
Item ID		27053
	Quantity [ pc ]	211

Relay; electromagnetic miniature; RT314012; 12V; DC; SPDT; 16A; 250V AC; 8A; 30V DC; PCB trough hole; for socket; TE Conectivity; RoHS

Relay; electromagnetic miniature; RT314012; 12V; DC; SPDT; 16A; 250V AC; 8A; 30V DC; PCB trough hole; for socket; TE Conectivity; RoHS
Item ID		32799
	Quantity [ pc ]	909

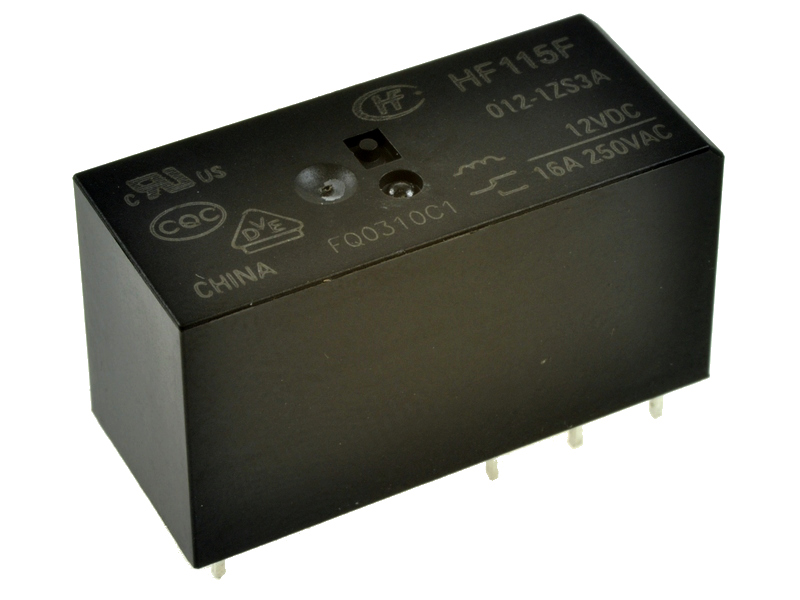

Relay; electromagnetic miniature; HF115F-012-1ZS3A (JQX115); 12V; DC; SPDT; 16A; 250V AC; PCB trough hole; for socket; Hongfa; RoHS

Relay; electromagnetic miniature; HF115F-012-1ZS3A (JQX115); 12V; DC; SPDT; 16A; 250V AC; PCB trough hole; for socket; Hongfa; RoHS
Item ID		29668
	Quantity [ pc ]	179
