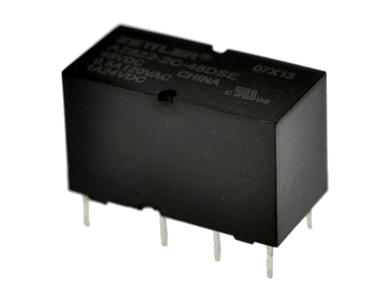

Relay; Zettler; AZ822-2C-48DSE; PCB trough hole; DPDT; 48V; 0,5A; 1A

Files to download
Datasheet

Relay; electromagnetic miniature; AZ822-2C-48DSE; 48V; DC; DPDT; 0,5A; 120V AC; 1A; 24V DC; PCB trough hole; Zettler; RoHS

Item ID: 15524

Quantity: 4 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	8,88
3+	7,40
5+	6,17
20+	5,61
100+	5,04

Quantity:

Info
Dimensions: 20 x 9.8 x 12 mm

Details
Name	Relay
Type	electromagnetic miniature
Symbol	AZ822-2C-48DSE
Input voltage	48V
Input voltage type	DC
Contacts configuration	DPDT
Rated AC current	0,5A
Rated AC voltage	120V AC
Rated DC current	1A
Rated DC voltage	24V DC
Mounting way	PCB trough hole
Manufacturer	Zettler
Certificates	RoHS
Coil resistance	7680Ohm
Rated coil power DC	147mW
