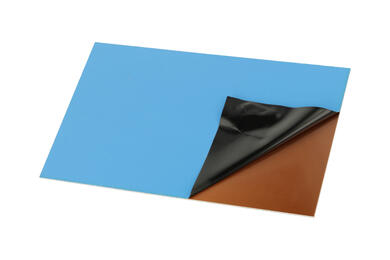

Laminate; 160x100mm; unilateral copper; photosensitive

Files to download
Datasheet

Laminate; unilateral copper; photosensitive; 160x100mm; FR4; 35um; 1,5mm; light-sensitive coating; Bungard

Item ID: 14394

Quantity: 25 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	14,70
2+	12,78
5+	12,38
20+	11,98
50+	11,59
100+	11,19

Quantity:

Details
Name	Laminate
Type	unilateral copper; photosensitive
Dimensions	160x100mm
Material	FR4
Copper plating thickness	35um
Laminate thickness	1,5mm
Board clad type	light-sensitive coating
Manufacturer	Bungard
