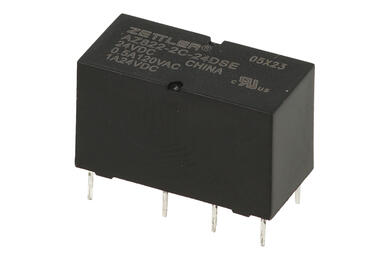

Relay; Zettler; AZ822-2C-24DSE; PCB trough hole; DPDT; 24V; 0,5A; 1A

Files to download
PDF

Relay; electromagnetic miniature; AZ822-2C-24DSE; 24V; DC; DPDT; 0,5A; 120V AC; 1A; 24V DC; PCB trough hole; Zettler; RoHS

Item ID: 01046

Quantity: 2 pc

Delivery 100 [ scheduled for 2025-01-03 ]

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	7,06
3+	5,65
5+	4,52
20+	4,24
100+	3,96

Quantity:

Info
Dimensions: 20 x 9.8 x 12 mm

Details
Name	Relay
Type	electromagnetic miniature
Symbol	AZ822-2C-24DSE
Input voltage	24V
Input voltage type	DC
Contacts configuration	DPDT
Rated AC current	0,5A
Rated AC voltage	120V AC
Rated DC current	1A
Rated DC voltage	24V DC
Mounting way	PCB trough hole
Manufacturer	Zettler
Certificates	RoHS
Coil resistance	2880Ohm
Rated coil power DC	98mW

Substitutes or similar items

Relay; electromagnetic miniature; G5V224; 24V; DC; DPDT; 0,5A; 125V AC; 2A; 30V DC; PCB trough hole; Omron; RoHS

Relay; electromagnetic miniature; G5V224; 24V; DC; DPDT; 0,5A; 125V AC; 2A; 30V DC; PCB trough hole; Omron; RoHS
Item ID		33049
	Quantity [ pc ]	1268

Relay; electromagnetic miniature; HFD27-024-S (JRC27F); 24V; DC; DPDT; 1A; 125V AC; 2A; 30V DC; PCB trough hole; Hongfa; RoHS

Relay; electromagnetic miniature; HFD27-024-S (JRC27F); 24V; DC; DPDT; 1A; 125V AC; 2A; 30V DC; PCB trough hole; Hongfa; RoHS
Item ID		06825
	Quantity [ pc ]	416
