Potentiometer; Vishay; 534 20k

Files to download
Datasheet

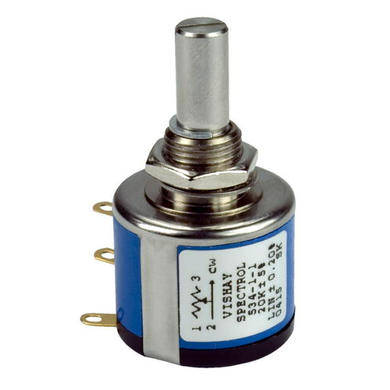

Potentiometer; helipot; shaft; multi turns; 534 20k; 20kohm; linear; 5%; 2W; axis diam.6,00mm; 12,7mm; metal; smooth; 10; wire-wound; solder; Vishay; RoHS

Item ID: 00996

Quantity: 0 pc

MOQ: 1

Multiple: 1

Quantity [ pc ]	Net price PLN
1+	60,00
3+	57,46
5+	54,92
10+	52,38
20+	49,83

Quantity:

Info
The item is available on request.

Details
Name	Potentiometer
Potentiometer type	helipot; shaft
Potentiometer kind	multi turns
Symbol	534 20k
Resistance	20kohm
Characteristic	linear
Tolerance	5%
Power	2W
Potentiometer axis diameter	axis diam.6,00mm
Potentiometer axis length	12,7mm
Potentiometer axis material	metal
Potentiometer axis surface	smooth
Number of turns / Rotation angle	10
Body dimensions	diam.22x18,6mm
Potentiometer serie	3590
Material	wire-wound
Electric mounting	solder
Manufacturer	Vishay
Certificates	RoHS

Substitutes or similar items

Potentiometer; helipot; shaft; multi turns; WXD3590S-203; 20kohm; linear; 5%; 2W; axis diam.6,00mm; 20,6mm; metal; smooth; 10; wire-wound; solder; KLS; RoHS

Potentiometer; helipot; shaft; multi turns; WXD3590S-203; 20kohm; linear; 5%; 2W; axis diam.6,00mm; 20,6mm; metal; smooth; 10; wire-wound; solder; KLS; RoHS
Item ID		00958
	Quantity [ pc ]	15
